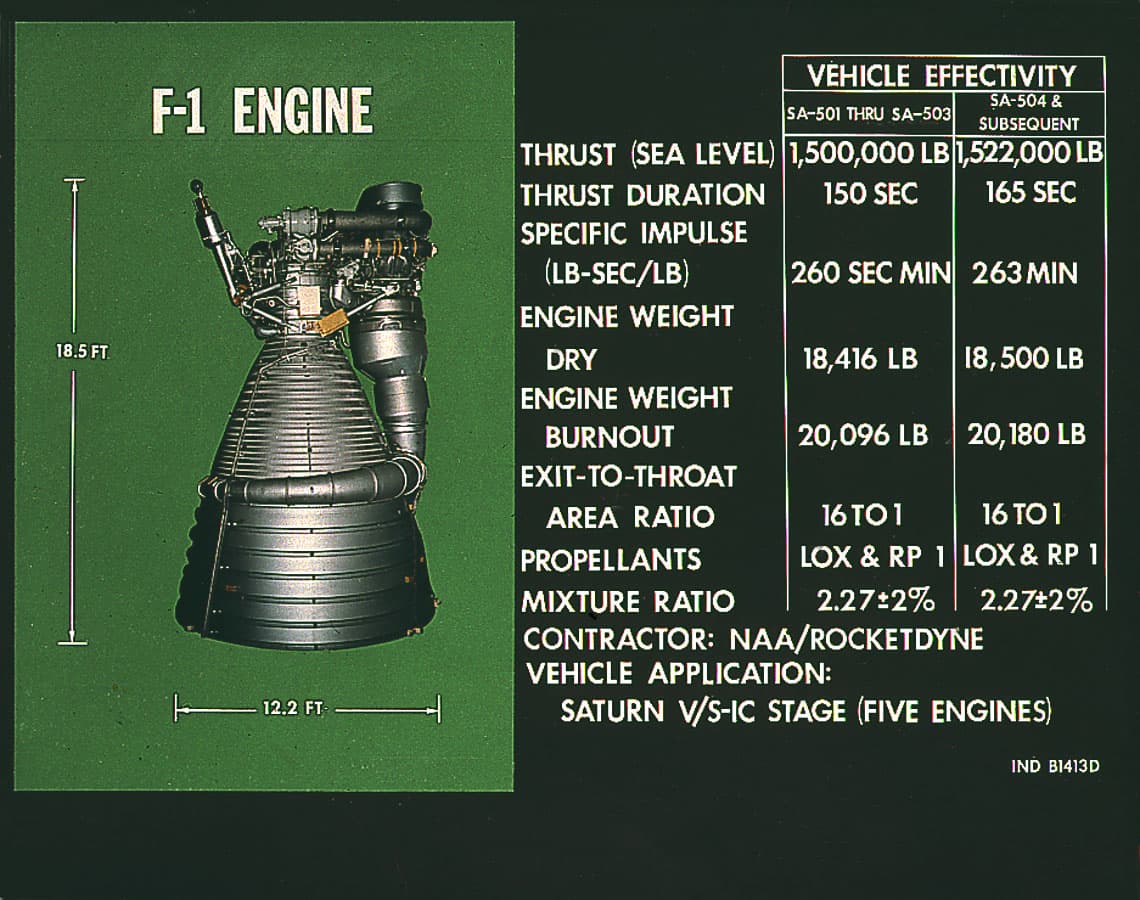

F-1 Engine
The F-1 engine was the large kerosene-and-liquid-oxygen rocket engine that powered the first stage of NASA's Saturn V launch vehicle.
What the F-1 engine was
The F-1 was a large single-chamber liquid rocket engine developed by Rocketdyne for NASA's Saturn V. It burned RP-1, a refined kerosene fuel, with liquid oxygen. On the launch vehicle, five F-1 engines were clustered at the bottom of the S-IC first stage to lift the fully fueled Saturn V off the pad.
Why Saturn V needed it
Apollo's lunar missions required a launch vehicle with enough thrust to move a huge spacecraft stack through the lower atmosphere. The F-1 gave the first stage the raw lift needed at the start of flight, when the rocket was heaviest and aerodynamic loads were beginning to build. Without engines in that class, Saturn V would have needed a very different architecture.
How it fit into the first stage
The S-IC stage arranged four F-1 engines around one center engine. The outer engines could gimbal, or tilt, to steer the rocket during early ascent. After the first stage finished its work, it shut down and separated, leaving the upper stages to continue accelerating Apollo toward Earth orbit and eventually toward the Moon.
Fuel, oxygen, and flow
A rocket engine is not just a nozzle with fire behind it. The F-1 had to move enormous amounts of fuel and oxidizer into a combustion chamber, mix them evenly, ignite them, and direct the exhaust through a nozzle. Turbopumps, valves, injectors, cooling passages, and control systems all had to work together during a short but intense first-stage burn.
Combustion instability
One of the F-1 program's hardest problems was combustion instability: pressure oscillations inside the chamber that could grow destructive very quickly. NASA and industry teams used testing, injector changes, and baffles to make combustion stable enough for flight. That work became one of the classic engineering stories behind Apollo's launch vehicle.
Testing and qualification
Before Saturn V carried astronauts, F-1 engines and full first-stage systems were tested on the ground and then flown on uncrewed Saturn V missions. The engine had to prove not only that it could make thrust, but that it could start reliably, run through vibration and heat, shut down in sequence, and work as part of a five-engine cluster.
Legacy after Apollo
The F-1 did not continue into routine production after the Apollo and Skylab era, but it remained a reference point for large kerosene rocket engines. Engineers have studied recovered hardware, old test data, and surviving engines to understand how the design achieved its performance and how similar lessons might apply to newer launch vehicles.
Why it matters
The F-1 engine shows that a moon rocket depended on many specialized breakthroughs, not just one famous vehicle. Saturn V's scale was visible from a distance, but its success also depended on injector design, turbopumps, materials, testing discipline, and the ability to turn unstable combustion into reliable thrust.
