Flow battery
A flow battery is a rechargeable battery that stores energy in liquid electrolytes held in external tanks and pumped through an electrochemical cell stack. Flow batteries are often studied for stationary and grid-scale storage because energy capacity can be increased by enlarging tanks while power depends mainly on the stack.
What a flow battery is
A flow battery stores chemical energy in liquid electrolytes outside the cell stack. Pumps move the electrolytes through the stack, where ions and electrons move through separate paths to charge or discharge the system. The architecture separates much of the energy storage material from the power-conversion hardware.
How the system works

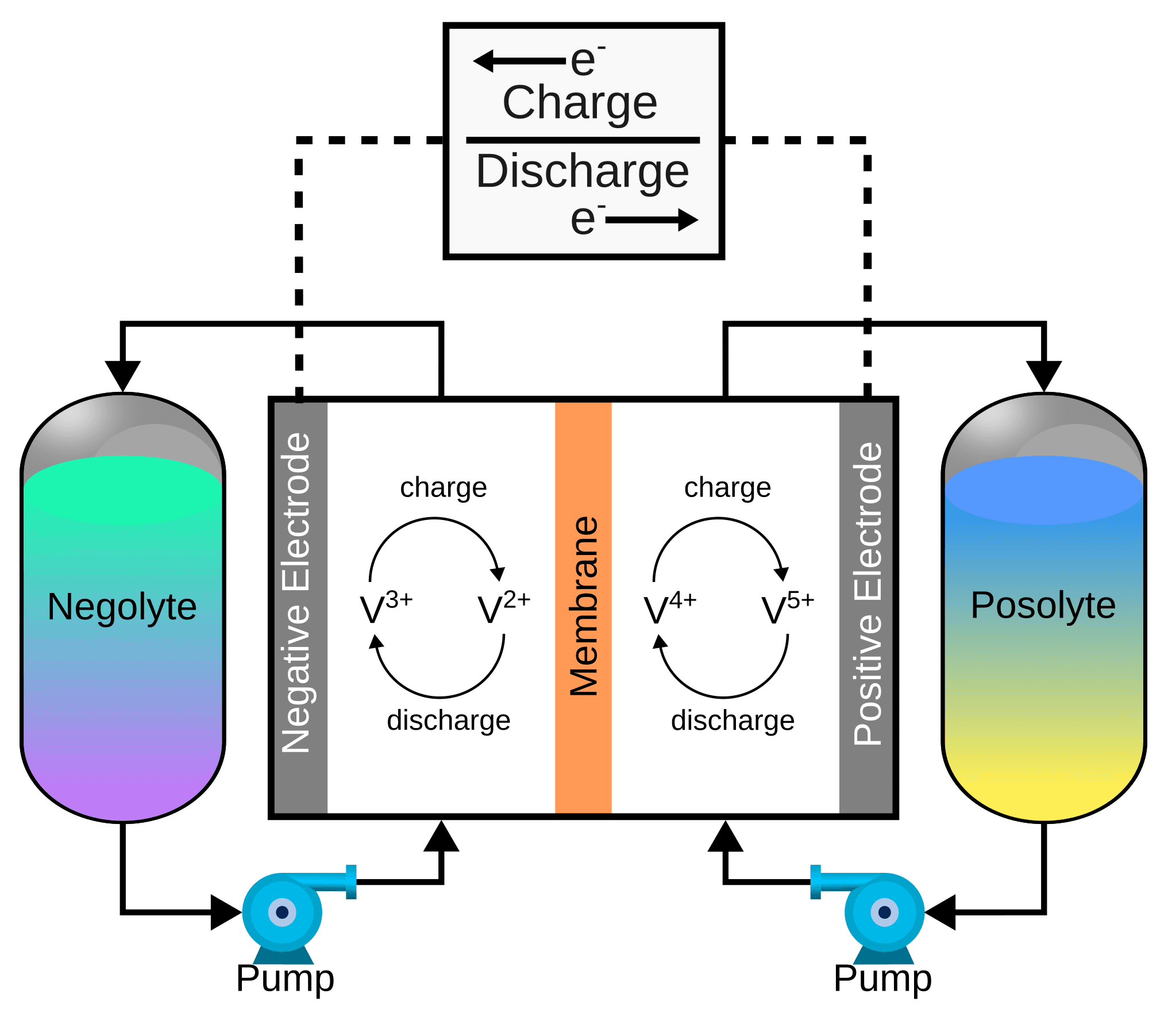

Most redox flow batteries use two electrolyte tanks, pumps, plumbing, electrodes, and a membrane or separator. During discharge, chemical species in the electrolytes change oxidation state. Ions cross through the separator to maintain charge balance while electrons travel through the external circuit to do useful work.
Power versus energy
A key design feature is that power and energy can be adjusted separately. More cell-stack area generally raises power, while larger tanks or more concentrated electrolyte raise energy capacity. This can make flow batteries attractive when a project needs many hours of storage rather than the smallest possible footprint.
Chemistries
Vanadium redox flow batteries are well known because they use the same element on both sides, reducing some cross-contamination problems. Other chemistries include zinc-bromine, iron-based, organic, aqueous, and hybrid systems. Each chemistry has different tradeoffs in cost, durability, safety, voltage, temperature range, and material supply.
Grid storage fit
Flow batteries can support renewable integration, microgrids, peak shifting, backup power, and long-duration storage where weight and volume are less important than lifetime, cycle count, safety, or flexible sizing. They may be especially useful where many charge-discharge cycles are expected over years of operation.
Engineering challenges
The tanks and pumps that make flow batteries flexible also add complexity. Designers must manage pump energy, leaks, corrosion, membrane cost, electrolyte stability, sensors, controls, maintenance, temperature, and installed footprint. Commercial success depends on total system cost, not only cell chemistry.
Safety and operations
Flow batteries are not one safety category. Some aqueous systems avoid flammable organic solvents, but electrolytes can still be acidic, caustic, toxic, or corrosive. Operators need containment, ventilation, spill procedures, monitoring, and maintenance plans that match the chemistry and site.
Why it matters
Electric grids with more variable renewable energy need storage options with different strengths. Flow batteries add a pathway for durable, stationary storage that can be sized for longer discharge durations. They will not replace every battery, but they can complement lithium-ion, sodium-ion, thermal storage, pumped hydro, and other grid tools.
