Lissajous Orbit
A Lissajous orbit is a looping spacecraft path near a Lagrange point, often used when a mission needs useful geometry without a fully closed halo orbit.
What a Lissajous orbit is
A Lissajous orbit is a three-dimensional spacecraft path around a collinear Lagrange-point region. It is usually described in the rotating frame of two large bodies, such as the Sun and Earth. The spacecraft loops around the region rather than sitting exactly on the Lagrange point.
Why the name fits
The name comes from Lissajous figures, the looping patterns made by combining oscillations in different directions. A spacecraft near L1 or L2 can trace a similar-looking pattern when its motion is projected onto the sky. The path is not a solid track in space; it is the result of coupled gravitational and orbital motion.
How it differs from a halo orbit
Halo and Lissajous orbits are closely related Lagrange-region paths, but they are not the same operating choice. A halo orbit is commonly treated as a periodic path that closes on itself. A Lissajous orbit is often quasi-periodic, so the spacecraft's projected loops can shift over time while staying within the mission's allowed region.
L2 observatories
Sun-Earth L2 is useful for observatories because the Sun, Earth, and Moon stay in roughly the same direction from the spacecraft. Gaia used a Lissajous orbit around L2 while mapping the positions and motions of stars. Planck also operated around L2, where thermal conditions and communications geometry supported its sky survey.
Station-keeping
Lissajous orbits near L1 and L2 still require active navigation. Small errors can grow because the collinear Lagrange regions are dynamically unstable. Mission teams use orbit determination and planned correction maneuvers to keep the spacecraft inside a safe and useful corridor.
Transfer design
Getting to a Lissajous orbit is part of the mission design problem. Spacecraft may use carefully timed correction burns and natural dynamical pathways near Lagrange regions. These transfers balance launch energy, arrival timing, propellant reserves, communication needs, and constraints from the spacecraft's instruments.

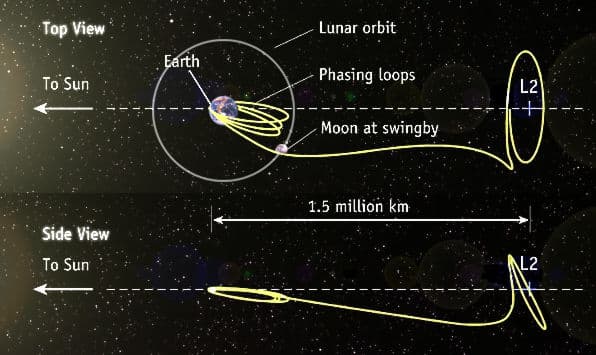

What the diagram shows
Many diagrams show a Lissajous orbit as a set of loops near L2, with a top view and side view. These drawings are not to scale, but they help show why the orbit is three-dimensional. The path can lead and lag relative to Earth while also moving above and below the ecliptic plane.
Why it matters
Lissajous orbits show how mission planners use celestial mechanics as part of spacecraft architecture. They make distant observing sites practical, reduce some thermal and pointing problems, and give engineers another option between simple planetary orbits and more specialized halo paths.
