Magnetic Compass
A magnetic compass is a direction-finding instrument whose magnetized needle aligns with Earth's magnetic field, helping travelers, sailors, pilots, and surveyors find bearings.
What a magnetic compass is

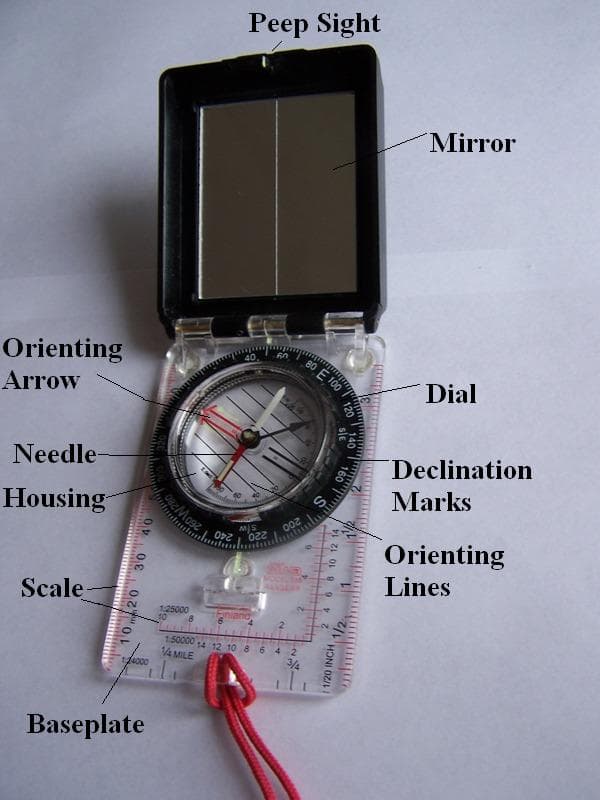

A magnetic compass is an instrument for finding direction on Earth's surface. Its pointer, card, or needle is magnetized and free to rotate, so it settles along the local magnetic field. Once the user knows where magnetic north lies, the rest of the directions can be read from the compass card or used with a map.
Why it points north
Earth behaves broadly like a large magnet, with a magnetic field surrounding the planet. A small magnet in a compass aligns with that field. The result is useful but imperfect: the needle does not point exactly to the geographic North Pole, and nearby metal, magnets, electrical currents, or vehicle structures can pull it away from the direction a navigator expects.
From lodestone to compass card
Early compasses were linked to lodestone, a naturally magnetized mineral. A magnetized piece of material could be floated or suspended so it turned toward a north-south line. Later designs put a needle or magnetic system on a pivot, then added a marked card with directions. That combination turned a magnetic effect into a practical navigation instrument.
Declination and deviation
Two errors matter especially. Declination, also called variation in marine navigation, is the angle between true north and magnetic north at a location. Deviation is local compass error caused by nearby magnetic influences, such as iron in a ship or electrical equipment. Navigators treat them differently: declination comes from magnetic models and charts, while deviation is measured and corrected for the specific vessel or installation.
Maps, bearings, and compass roses
A compass becomes more powerful when paired with a map or chart. A bearing gives the direction from one point to another, while a compass rose shows directional divisions such as north, east, south, and west, plus intermediate points or degrees. On nautical charts, compass roses often help users compare true and magnetic directions.
Modern compasses
Magnetic compasses still appear in handheld outdoor tools, ships, aircraft, vehicles, and phones. Digital compasses use magnetometers rather than a visible needle, but they face the same physical issue: they measure magnetic field direction and need calibration and models to relate that measurement to true direction. Gyrocompasses and satellite navigation solve different problems, but they did not erase the simple value of magnetic heading.
Why it matters
The magnetic compass made direction available without clear skies or continuous landmarks. It helped sailors cross open water, supported surveying and mapmaking, and gave ordinary travelers a durable way to orient themselves. Its limits are just as instructive: good navigation depends on knowing what an instrument actually measures.
