J-2 Engine

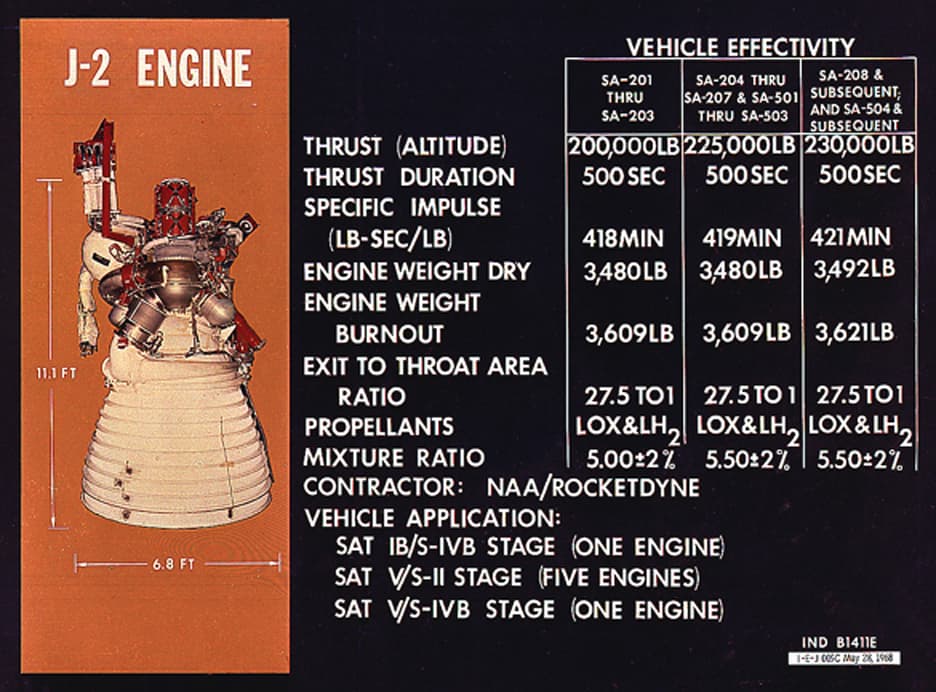

The J-2 engine was a liquid-hydrogen and liquid-oxygen rocket engine used on the upper stages of Saturn launch vehicles.
What the J-2 engine was
The J-2 was a Rocketdyne liquid rocket engine developed for the upper stages of the Saturn family. Unlike the kerosene-burning F-1 engines used for Saturn V liftoff, the J-2 burned liquid hydrogen and liquid oxygen. That cryogenic combination gave the upper stages efficient thrust after the rocket had climbed out of the densest part of the atmosphere.
Where it flew on Saturn V
Saturn V used five J-2 engines on its S-II second stage and one J-2 engine on its S-IVB third stage. The S-II continued acceleration after first-stage separation, while the S-IVB finished Earth-orbit insertion. For lunar missions, the S-IVB engine then restarted to perform the translunar injection burn that sent Apollo toward the Moon.
Why hydrogen mattered
Liquid hydrogen is difficult to store because it is extremely cold and low in density, but it can deliver high efficiency when burned with liquid oxygen. That made it attractive for upper stages, where every kilogram saved improved the payload that could reach orbit or leave Earth orbit. The J-2 helped turn that efficiency into operational Apollo hardware.
Restarting in space
The S-IVB J-2 had to do more than fire once. On lunar missions, it first helped place Apollo into a temporary Earth orbit. After system checks, the engine restarted for translunar injection. That restart made the engine part of the mission sequence, not just the launch sequence, because a failed restart would have kept Apollo from leaving Earth orbit.
Testing and reliability
The J-2 program depended on ground testing at NASA and contractor facilities. Engineers had to qualify the engine, verify starts and shutdowns, study combustion behavior, and understand how hardware performed in stage-level tests. Apollo's schedule left little room for engine uncertainty, so the upper-stage propulsion system had to become predictable before crewed lunar flights.
Comparison with the F-1
The F-1 and J-2 solved different launch problems. F-1 engines produced enormous sea-level thrust to lift Saturn V from the pad. J-2 engines worked later, where efficiency mattered more and the vehicle was lighter. The contrast between them shows why large rockets use stages with engines optimized for different parts of flight.
Later influence
The J-2 remained important after Apollo because it shaped later thinking about hydrogen upper-stage engines. Engineers studied its design, documentation, and test history when considering derivative engines and new exploration launch systems. Even when newer engines use different materials and methods, the J-2 remains part of the lineage of high-energy upper-stage propulsion.
Why it matters
The J-2 engine made Saturn V more than a giant liftoff machine. It helped finish orbital insertion, enabled the Moon-bound burn, and showed how cryogenic upper stages could extend a launch vehicle's reach. Understanding the J-2 makes Apollo's architecture clearer because it explains how the rocket kept gaining mission capability after the first stage was gone.
